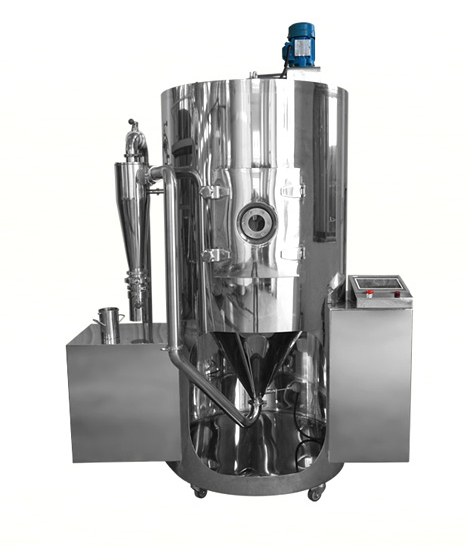

High Speed Centrifugal Spray Dryer

GZ Series High Speed Granulating Spray Dryer is widely using in ceramic industry, capacitor material ,aluminium oxide etc…material which have special requirement for granulate size. The granule size distribution of final product can be willfully adjust to optimum distribution, also with high advanced level in main technical performance and technique target.

Main Technical Parameter of G Series High Speed Centrifugal Spray Dryer
c
Model | Parameters G
5 25 50 150 300-2000
Inlet Air Temperature 350
Outlet Air Temperature 80-90
Maximum Water Evaporation Capacity kg/h 5 25 50 150 300-2000
Transmission Form Of Centrifugal Atomizer Compressed Air Transmission Mechanical Transmission
Rotary Speed r.p.m 25000 22000 18000 16000 15000
Diameter of Atomizer Disc
(mm)
50 102 120 150 180-210
Heating Source(Optional) Electric Electric + Steam Electric + Steam
Diesel , Natural gas
Electric + Steam
Diesel , Natural gas
(Optional By Client )
Diameter of drying chamber(mm) Ø1000 Ø1600 Ø2000 Ø2800 /
Total height of equipment m 2.2 4.2 5.1 7 Electric mechanical drive
